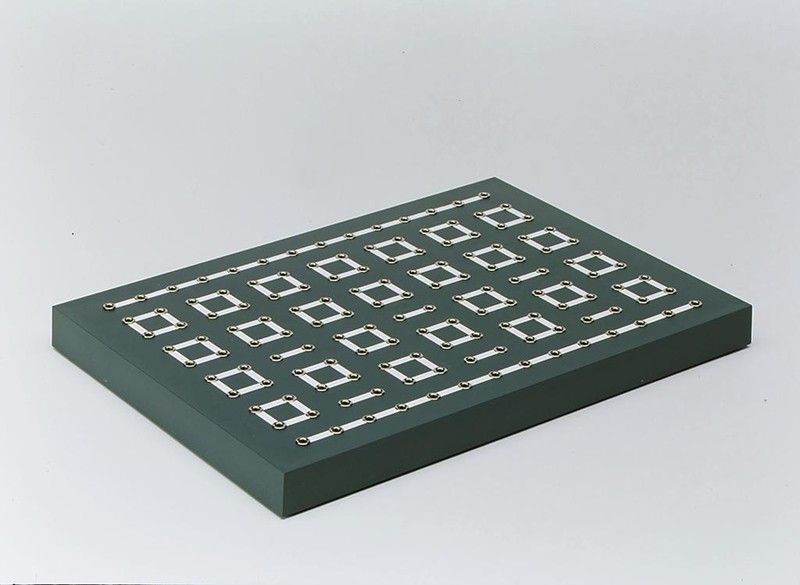

Universal plug-in board
For building electrical and electronic circuits with plug-in elements. Due to a special arrangement of the socket connections, a variety of set-ups with potentiometer and transistor circuits are possible.
Technical data
Permissible operating voltage: 12 V AC/DC
Number of sockets: 140
Dimensions: 310 x 220 x 25 mm
For building electrical and electronic circuits with plug-in elements. Due to a special arrangement of the socket connections, a variety of set-ups with potentiometer and transistor circuits are possible.
Technical data
Permissible operating voltage: 12 V AC/DC
Number of sockets: 140
Dimensions: 310 x 220 x 25 mm
Properties
- 20402/CVK
