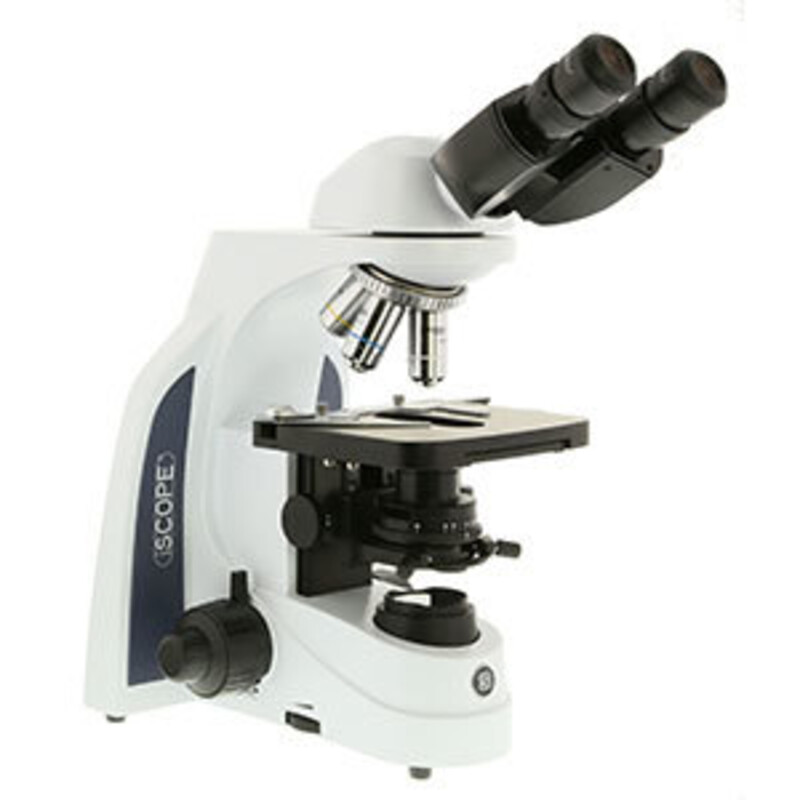

Life Science iScope binocular microscope with EWF10x/22 mm eyepieces and E-Plan IOS objectives
Eyepieces
EWF10x/22 mm
Head
Binocular with Siedentopf 30° inclined tubes. Interpupillary distance 47-76 mm with diopter adjustment on both eyepieces
Nosepiece
Revolving quintuple reversed nosepiece on ball bearings
Objectives
E-Plan EPLi 4x/0.10, 10x/0.25, S40x/0.65, S100x/1.25 oil-immersion DIN IOS objectives. All optical parts are anti-fungus treated
Stage
216 mm x 150 mm rackless stage equipped with integrated 79 x 52 mm mechanical stage
Condenser
In height adjustable Abbe N.A. 1.25 condenser with opening for optional sliders
Focusing adjustment
Coaxial coarse and fine adjustments, 2 µm precision, 20 mm travel range. Rack-stop for protection of slides and objectives. Friction adjustment
Illumination and power supply
Diascopic intensity adjustable 3W NeoLED™ Köhler illumination with internal 100-240V power supply
iCare Sensor
The unique iCare Sensor is developed to avoid unnecessary loss of energy. The illumination of the microscope automatically switches off when the microscopist steps away from his position
CSS - Cable Storage System
The Cable Storage System of the iScope allows the user to practically insert the power cable into the backside of the instrument, which enables easy storage
Packaging
Delivered with power cord, 500 mA 250V spare fuse and dust cover
Eyepieces
EWF10x/22 mm
Head
Binocular with Siedentopf 30° inclined tubes. Interpupillary distance 47-76 mm with diopter adjustment on both eyepieces
Nosepiece
Revolving quintuple reversed nosepiece on ball bearings
Objectives
E-Plan EPLi 4x/0.10, 10x/0.25, S40x/0.65, S100x/1.25 oil-immersion DIN IOS objectives. All optical parts are anti-fungus treated
Stage
216 mm x 150 mm rackless stage equipped with integrated 79 x 52 mm mechanical stage
Condenser
In height adjustable Abbe N.A. 1.25 condenser with opening for optional sliders
Focusing adjustment
Coaxial coarse and fine adjustments, 2 µm precision, 20 mm travel range. Rack-stop for protection of slides and objectives. Friction adjustment
Illumination and power supply
Diascopic intensity adjustable 3W NeoLED™ Köhler illumination with internal 100-240V power supply
iCare Sensor
The unique iCare Sensor is developed to avoid unnecessary loss of energy. The illumination of the microscope automatically switches off when the microscopist steps away from his position
CSS - Cable Storage System
The Cable Storage System of the iScope allows the user to practically insert the power cable into the backside of the instrument, which enables easy storage
Packaging
Delivered with power cord, 500 mA 250V spare fuse and dust cover
Properties
- IS.1152-EPLI
| Magnification | Eyepieces | Cross table | Price | Amount | |
|---|---|---|---|---|---|
| 4x/40x/100x/1000x | Bino | 973,00 €/pieces |
|
||
| 4x/40x/100x/1000x | Bino | 1.099,00 €/pieces |
|
||
| 4x/40x/100x/1000x | Bino | 1.190,00 €/pieces |
|
||
| 4x/40x/100x/1000x | Trino | 1.010,00 €/pieces |
|
||
| 4x/40x/100x/1000x | Trino | 1.133,00 €/pieces |
|
||
| 4x/40x/100x/1000x | Trino | 1.300,00 €/pieces |
|
||
| 4x/100x/400x | Trino | 2.311,00 €/pieces |
|
||
|
|
|||||
| Name | Link |
|---|---|
| Datasheet English | Datasheet English (PDF - 3.5 MB) |
| Fiche Technique Français | Fiche Technique Français (PDF - 3.5 MB) |
