There are 2 variants of this article, view them here >

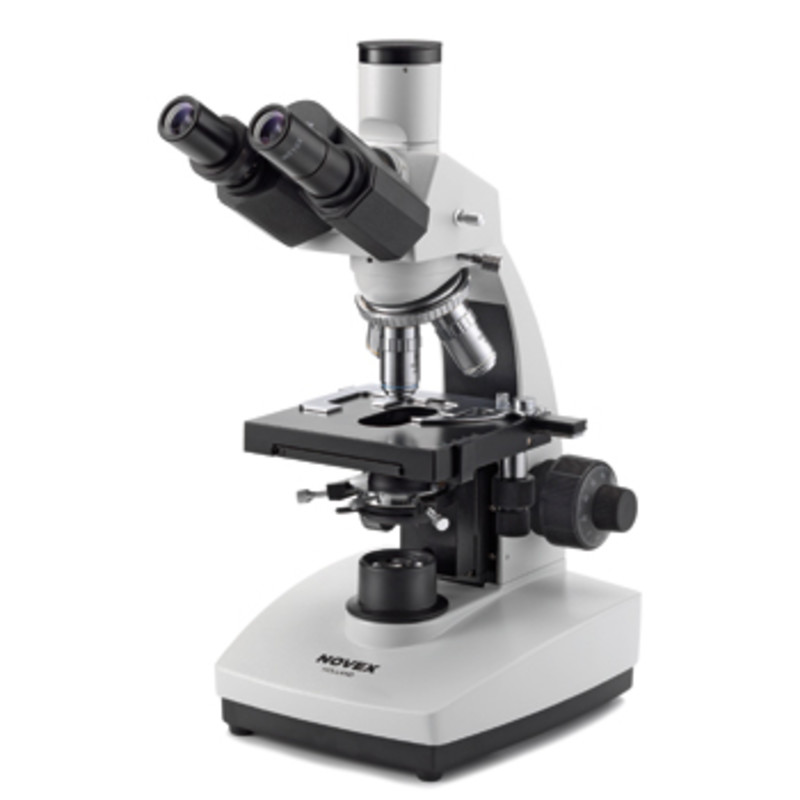

These microscopes of the B models are equipped with a strong LED illumination for bright field applications. The microscopes with built-in rechargeable batteries can be used for biomedical sciences, for general lab research, in secondary and higher education and veterinarians
Eyepieces
DIN widefield eyepieces WF10x/18
Tube
Trinocular head with 30° inclined tube, fully rotatable over 360°. Tube length 160 mm
Interpupillary
distance adjustable between 55 and 75 mm. One eyepiece with diopter adjustment
Nosepiece
Revolving inward facing nosepiece, ball-bearing mechanism, for 4 objectives
Objectives
Semi-plan achromatic DIN-objectives SMP 4x N.A.0.10, SMP 10x N.A.0.25, SMP S40x N.A.0.65 and SMP S100x N.A.1.25, oil-immersion. The 40x and 100x objectives are spring-mounted. All optical parts are coated
Stand
Heavy alloy stand is enameled with a stove-hardened off-white and black lacquer. Focus control by means of coaxial coarse and fine adjustment knobs; fine adjustment knob is graduated for 0.002 mm per interval
Stage
Large mechanical stage, 120 x 135 mm, ball-bearing mechanism, with X and Y adjustment 75 x 35 mm. Double nonius, readable in 0.1 mm. Detachable slide holder.
Condenser
Abbe condenser N.A. 1.25 in centrable holder, with iris diaphragm and filter holder with neutral filter and blue filter. Vertical adjustment by means of control knob
Illumination
Adjustable built-in 3 watt LED illumination with 3NiMH AA type batteries for cordless operation
Packing
Packed with dust cover, filters, tools, immersion oil and tools in styrofoam case
Eyepieces
DIN widefield eyepieces WF10x/18
Tube
Trinocular head with 30° inclined tube, fully rotatable over 360°. Tube length 160 mm
Interpupillary
distance adjustable between 55 and 75 mm. One eyepiece with diopter adjustment
Nosepiece
Revolving inward facing nosepiece, ball-bearing mechanism, for 4 objectives
Objectives
Semi-plan achromatic DIN-objectives SMP 4x N.A.0.10, SMP 10x N.A.0.25, SMP S40x N.A.0.65 and SMP S100x N.A.1.25, oil-immersion. The 40x and 100x objectives are spring-mounted. All optical parts are coated
Stand
Heavy alloy stand is enameled with a stove-hardened off-white and black lacquer. Focus control by means of coaxial coarse and fine adjustment knobs; fine adjustment knob is graduated for 0.002 mm per interval
Stage
Large mechanical stage, 120 x 135 mm, ball-bearing mechanism, with X and Y adjustment 75 x 35 mm. Double nonius, readable in 0.1 mm. Detachable slide holder.
Condenser
Abbe condenser N.A. 1.25 in centrable holder, with iris diaphragm and filter holder with neutral filter and blue filter. Vertical adjustment by means of control knob
Illumination
Adjustable built-in 3 watt LED illumination with 3NiMH AA type batteries for cordless operation
Packing
Packed with dust cover, filters, tools, immersion oil and tools in styrofoam case
Properties
- 199512
Magnification | Eyepieces | Cross table | ||
---|---|---|---|---|
40x/100x/400x/1000x | Trino | |||
40x/100x/400x/1000x | Mono |
