EXTRACTION UNIT MODEL

141001/LAB

EXTRACTION UNIT MODEL

141001/LAB

693,08 €/pieces 21% VAT excluded

pieces

Extraction units/modules
Safe capturing of escaping vapours and gases at the point where they are released or produced

very low noise, ideal for direct installation at the workplace
with connection cable and power cord
connecting fitting 75 NW
ATEX compliant: CE Ex II 3/-G Ex c llC T4

Without extraction air monitoring
the green LED turns off in case of power failure

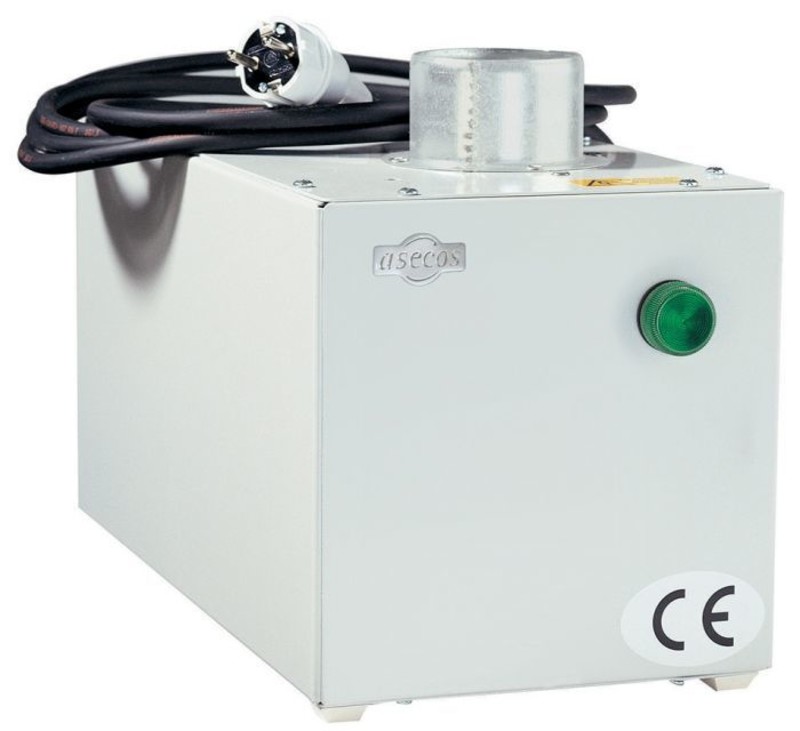

extraction unit HF.EA.8677.
for tall cabinets

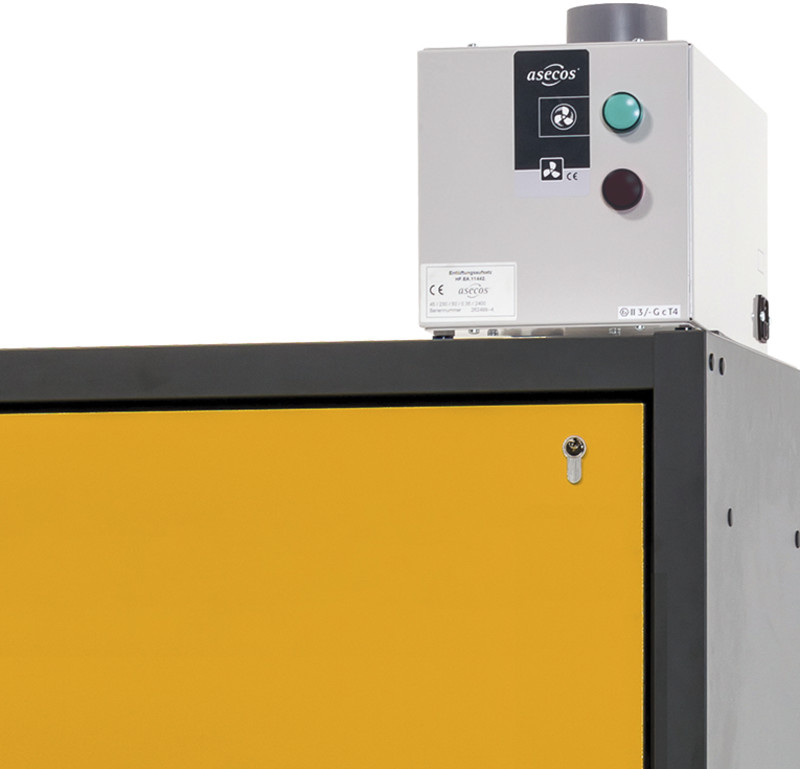

for installation on the cabinet
sheet steel powder-coated
CE compliant
explosion-proof, ATEX label: CE EX II 3/- G Ex c IIC T4
installation in explosion zone: outside any EX-ZONE
extraction from explosion zone: EX-Zone 2
W x D x H (mm): 200 x 400 x 200

Width (external) 200 mm
Depth (external) 400 mm
Height (external) 200 mm
Weight 10.1 kg
Exhaust air monitoring No (0)
Speed 2,400 rpm
Frequency 50 Hz
Nominal voltage 230 V
Emission sound pressure level 35 dB
Maximum current consumption 0.35 A
Max. volume flow 140 m³/h
Potential-free alarm contact No (0)
