Set
There are 5 variants of this article, view them here >
Euromex EcoBlue
These modern microscopes were specifically developed for education with a special attention for ergonomics and with a outstanding price/quality ratio. The eyepieces are secured and equipped with an adjustable specimen protection.

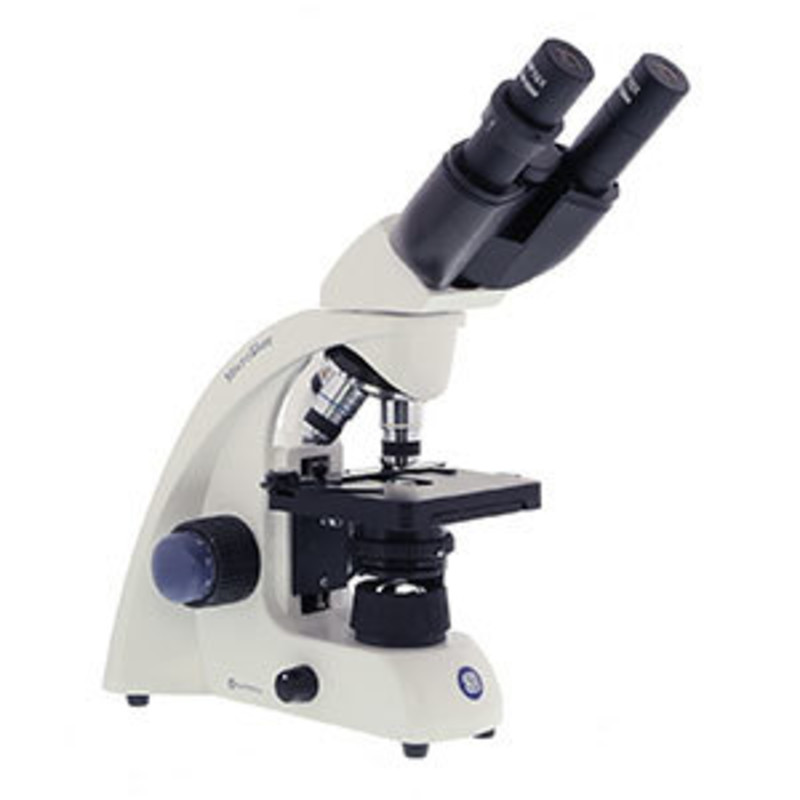

Binocular school microscope with achromatic 4x 10x S40x S100x objectives with Neo LED illumination and light intensity control
Eyepiece
Secured wide field eyepiece WF 10x/18 with fixed pointer
Observation tube
Monocular 30° inclined tube, 360° rotation. Tube length 160 mm
Nosepiece
Nosepiece for 4 objectives. Ball-bearing mechanism and click-stops
Objectives
Achromatic 4x N.A. 0.10, 10x N.A. 0.25, S40x N.A. 0.65 and S100x N.A. 0.85 oil immersion 35 mm parafocal objectives. The S40x and S100x objectives are spring-mounted
Stages
Square stage 115 x 100 mm with 30 x 70 mm X-Y translation stage
Focus control
Coaxial coarse- and fine adjustment knobs on both sides with 0.002 mm graduations
Friction of focus control can be adjusted
Condenser
Height adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder
Illumination
Neo LED 1 Watt illumination with intensity control. Internal 85-230V operation power supply
Packaging
Complete with spare fuse, manual and dustcover in styrofoam case
MB1152
These modern microscopes were specifically developed for education with a special attention for ergonomics and with a outstanding price/quality ratio. The eyepieces are secured and equipped with an adjustable specimen protection.
Binocular school microscope with achromatic 4x 10x S40x S100x objectives with Neo LED illumination and light intensity control
Eyepiece
Secured wide field eyepiece WF 10x/18 with fixed pointer
Observation tube
Monocular 30° inclined tube, 360° rotation. Tube length 160 mm
Nosepiece
Nosepiece for 4 objectives. Ball-bearing mechanism and click-stops
Objectives
Achromatic 4x N.A. 0.10, 10x N.A. 0.25, S40x N.A. 0.65 and S100x N.A. 0.85 oil immersion 35 mm parafocal objectives. The S40x and S100x objectives are spring-mounted
Stages
Square stage 115 x 100 mm with 30 x 70 mm X-Y translation stage
Focus control
Coaxial coarse- and fine adjustment knobs on both sides with 0.002 mm graduations
Friction of focus control can be adjusted
Condenser
Height adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder
Illumination
Neo LED 1 Watt illumination with intensity control. Internal 85-230V operation power supply
Packaging
Complete with spare fuse, manual and dustcover in styrofoam case
MB1152
Properties
- MB.1152
- 192080
Filter
5 of 5 visible.
| Magnification | Eyepieces | Cross table | Price | Amount | ||
|---|---|---|---|---|---|---|
|
40x/100x/400x | Mono | 183,00 €/pieces |
|
||
|
|
40x/100x/400x/1000x | Bino | 355,00 €/pieces |
|
||
|
|
40x/100x/400x | Mono | 249,00 €/pieces |
|
||
|
|
40x/100x/400x | Bino | 306,00 €/pieces |
|
||
|
|
40x/100x/400x/600x | Mono | 286,00 €/pieces |
|
| Name | Link |
|---|---|
| Microblue datasheet | Microblue datasheet (PDF - 2.8 MB) |
| Microblue fiche technique_Fr | Microblue fiche technique_Fr (PDF - 2.8 MB) |
