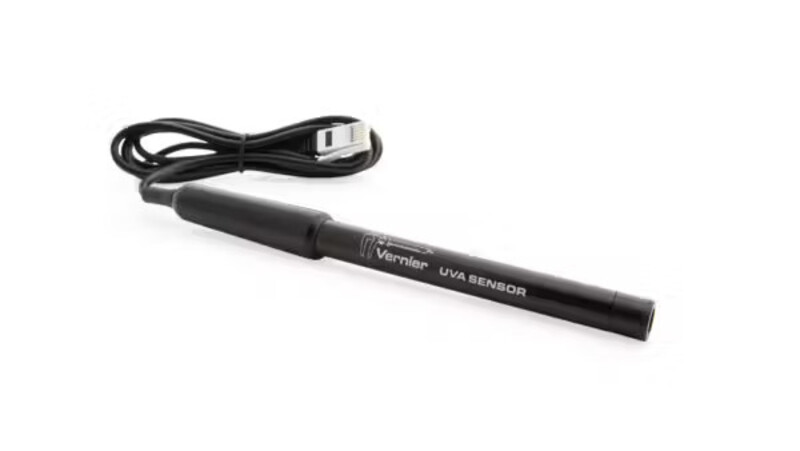

The UVA Sensor is an ultraviolet light sensor that responds primarily to UVA radiation (approximately 320 to 390 nm). This sensor is ideal for experiments using UV lamps.
Specifications
UV peak sensitivity: one volt per 3940 mW/m2 at 340 nm
Wavelength sensitivity region, approximate: 320 to 390 nm (320 to 375 nm, half-sensitivity points)
Dimensions: 21 cm by 2 cm diameter
Typical Resolution: 5 mW/m2
Time response: approximately 2 seconds to reach 95% of final reading
Download the user manual for full specifications
What's Included
Vernier UVA Sensor
User manual
Specifications
UV peak sensitivity: one volt per 3940 mW/m2 at 340 nm
Wavelength sensitivity region, approximate: 320 to 390 nm (320 to 375 nm, half-sensitivity points)
Dimensions: 21 cm by 2 cm diameter
Typical Resolution: 5 mW/m2
Time response: approximately 2 seconds to reach 95% of final reading
Download the user manual for full specifications
What's Included
Vernier UVA Sensor
User manual
