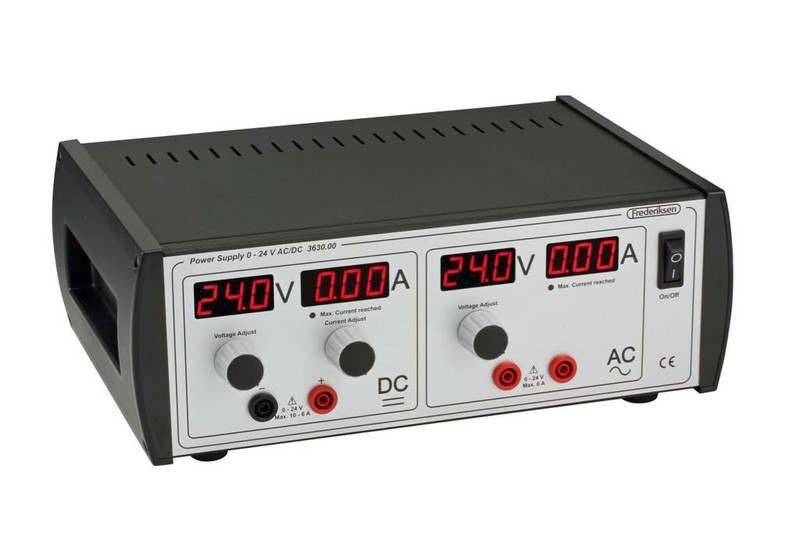

Our bestselling power supply 363000 has got a new cabinet and is now black instead of blue but is otherwise completely as usual.
Power supply 0-24 V AC/DC
This power supply features continuous regulation from 0-24 V AC and DC. It can be connected to separate loads to the DC and the AC connections, and the voltages can be set separately. It also permits simultaneous digital readout of both the AC and DC voltages and currents.
The power supply has continuous regulation of DC current in the entire current range, and a fixed AC current limiter is provided. It is electronically protected against overloads.

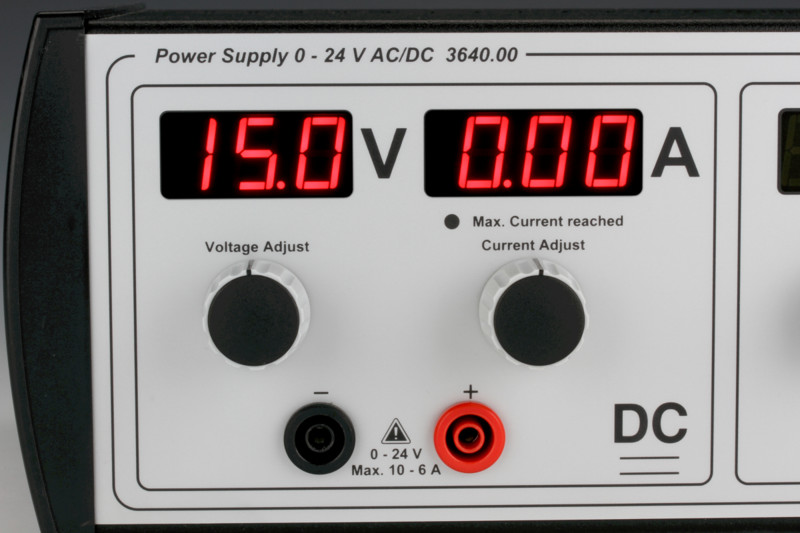

LED indicators in both the DC and AC ranges indicate whether or not the current supplied has reached the upper limit, in which case the built-in current regulation will reduce the output voltage.
The switch mode design enhances the dependability and lifetime of the power supply due to lower operating temperatures for all circuit components. The supply also boasts low weight compared with traditional power supply solutions.
This is a user-friendly power supply with a large capacity. The simple and logically arranged control panel reduces the possibility of incorrect use. The unit is sturdy and compact. It can operate hour after hour at maximum rated current capacity without overheating
Powerful, stabilised DC section with adjustable current limiter Synthesized AC output, isolated from mains noise and distortion Simultaneous readout of voltages and currents for AC and DC Weighs only 2.5 kg High efficiency – low temperature No fan – no noise
Specifications
DC
Voltage: 0-24 V DC smoothed, stabilized and continuously adjustable
Noise and ripple: Less than 25 mV
Current: Up to 10 A
AC
Voltage: 0-24 V AC continuously adjustable
Current: Max. 6 A
Frequency: The same as the line voltage (50-60Hz)
Common
Electronically protected against overloading
Line voltage: 230 V AC
Size: 297 x 225 x 118 mm

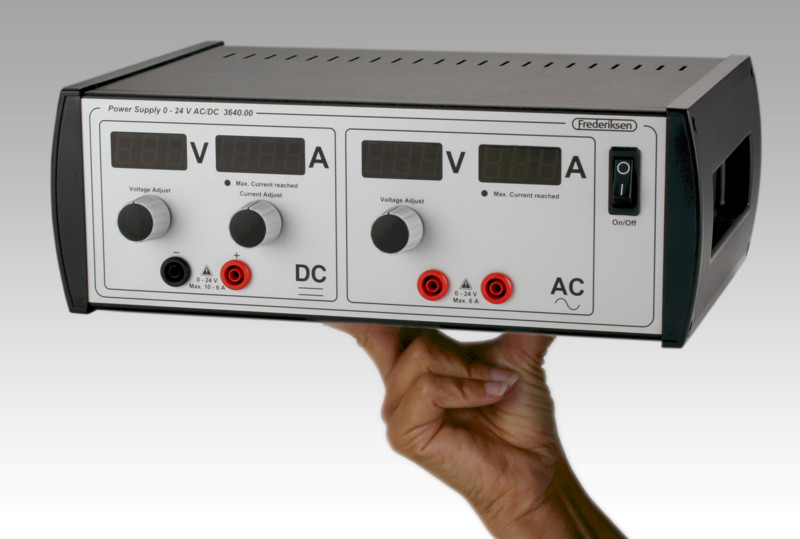

Weight: 2.5 kg
(replaces F363000 - 3630.00)
Power supply 0-24 V AC/DC
This power supply features continuous regulation from 0-24 V AC and DC. It can be connected to separate loads to the DC and the AC connections, and the voltages can be set separately. It also permits simultaneous digital readout of both the AC and DC voltages and currents.
The power supply has continuous regulation of DC current in the entire current range, and a fixed AC current limiter is provided. It is electronically protected against overloads.
LED indicators in both the DC and AC ranges indicate whether or not the current supplied has reached the upper limit, in which case the built-in current regulation will reduce the output voltage.
The switch mode design enhances the dependability and lifetime of the power supply due to lower operating temperatures for all circuit components. The supply also boasts low weight compared with traditional power supply solutions.
This is a user-friendly power supply with a large capacity. The simple and logically arranged control panel reduces the possibility of incorrect use. The unit is sturdy and compact. It can operate hour after hour at maximum rated current capacity without overheating
Powerful, stabilised DC section with adjustable current limiter Synthesized AC output, isolated from mains noise and distortion Simultaneous readout of voltages and currents for AC and DC Weighs only 2.5 kg High efficiency – low temperature No fan – no noise
Specifications
DC
Voltage: 0-24 V DC smoothed, stabilized and continuously adjustable
Noise and ripple: Less than 25 mV
Current: Up to 10 A
AC
Voltage: 0-24 V AC continuously adjustable
Current: Max. 6 A
Frequency: The same as the line voltage (50-60Hz)
Common
Electronically protected against overloading
Line voltage: 230 V AC
Size: 297 x 225 x 118 mm
Weight: 2.5 kg
(replaces F363000 - 3630.00)
